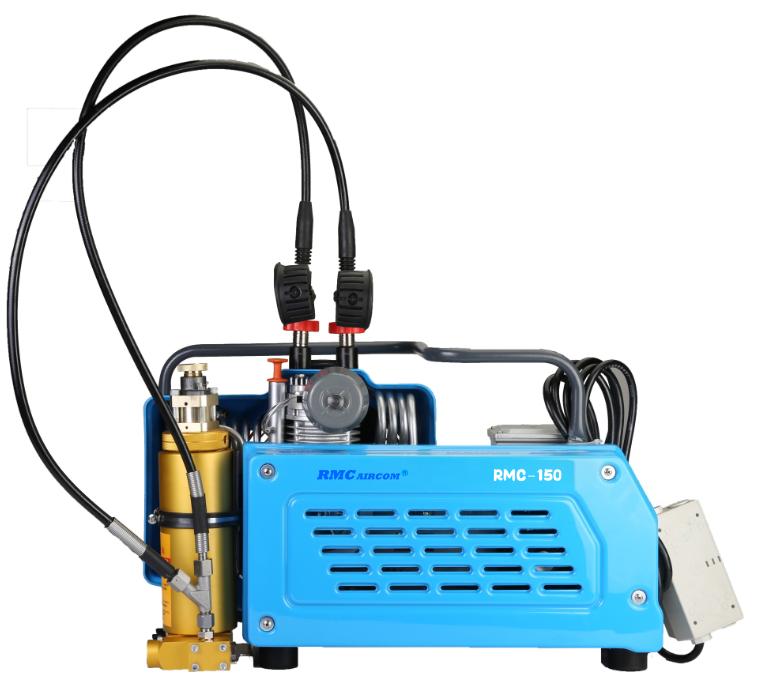

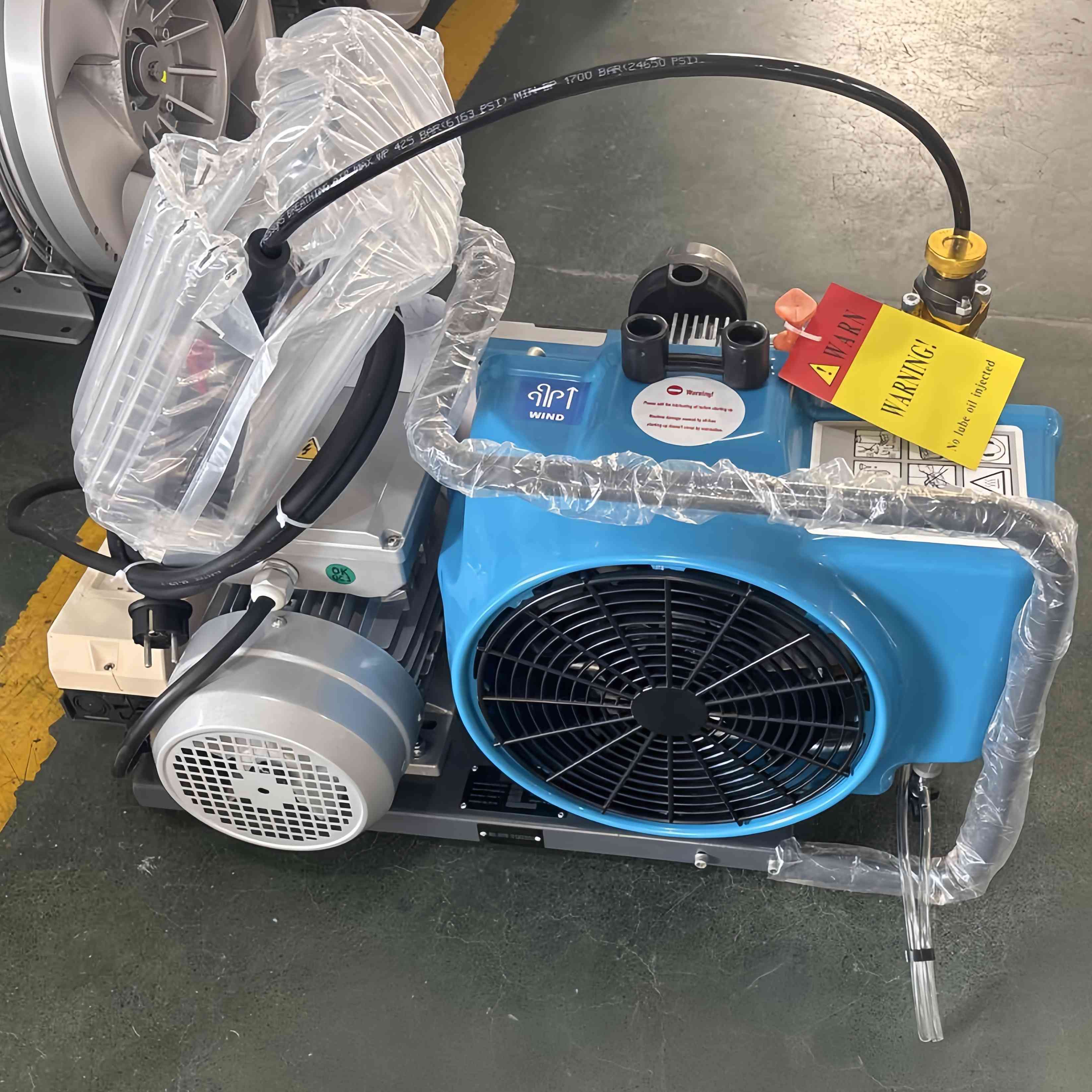

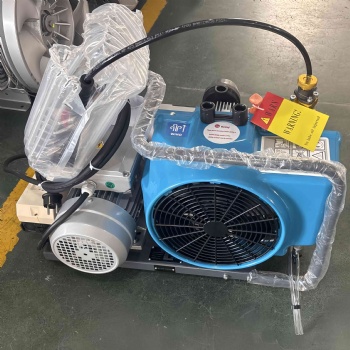

RMC-150 150L/min 225bar 330bar High Pressure scuba Diving AIR COMPRESSOR
high pressure scuba air compressor air cooled diving compressor High pressure scuba compressor 225bar diving air compressor 330bar air compressor
High pressure breathing air compressor
RMC-150 compressors,multistage,air cooled,oil lubrication,W type.
Compressor Performance Data
ITEM NAME:AIR COMPRESSOR ITEM NO.:RMC-150 | ||
Medium | AIR | |
Inlet air pressure | 1.013 | bar |
Stage | 3 | stage |
Cylinder qty | 3 | stage |
Pressure | 200-330 as required | bar |
Capacity | 150 | L/min |
Power | 3 | KW |
electrical Motor or gasoline engine | 220/380/440 | V |
50/60 | HZ | |
Noise | 86 | dB(A) |
Ambient temperature | 5 to+45 | deg C |
Cooling | Air cooling | |
1st stage cylinder | 70 | mm |
2nd stage cylinder | 28 | mm |
3rd stage cylinder | 12 | mm |
Stroke | 24 | mm |
R.P.M | 2300 | RPM |
Lubricating oil requirements | 0.36 | l |
1st stage outlet pressure | 6-7 | bar |
2nd stage outlet pressure | 40-60 | bar |
**Capacity illustrated is based on measurement at 1.013 bar Abs and 20°C.Performance tolerances will be in accordance with tables illustrated in ISO1217:1996.
Dimension&Weight
Dimension 770mm*380mm*420mm

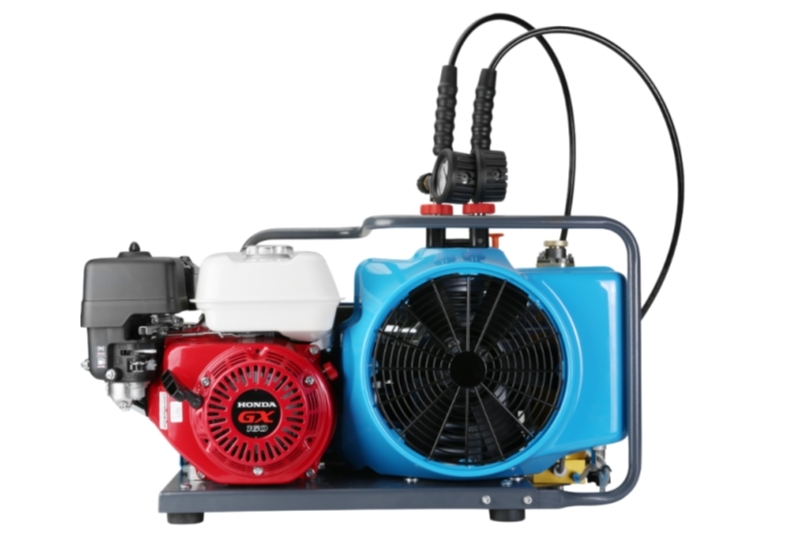

Weight 49kg(with gasoline engine weight different 47 kg)
GENERAL SCOPE OF SUPPLY
-Inlet filter
-inter-stage pipeline
-Inter-stage and after coolers,air cooled design
-Separators after each cooler
-Manual drain/unload valve
- Relief valve after each stage
- Non-return valve on compressor discharge
COMPRESSOR BLOCK
- “W”design,3cylinders,3stage compressor block
- Totally enclosed crankcase
- Dynamically balanced,rifle-drilled crankshaft
- Adjustable taper-roller main bearings
- Precision connecting rod bearing inserts
- Matched and balanced pistons
- Separately removable,deep-finned,air-cooled cylinders
- Precision,disc-type compressor valves
- Belt pulley
Cooling fan driven by crankshaft for cylinders
Air Compressor Introduction
Our compressors are manufactured according to the most stringent standards in the world.Our highest pressure reaches 450BAR(45MPA).Our compressors can compress air and inert gases.
The compressor has a sturdy rigid chassis for easy movement.The chassis is made of aluminium steel plate and reinforced by structural parts.The small equipment is equipped with a handle for easy movement..
The vertical compressor is an integral skid-mounted structure,which is derived from industrial applications and has been continuously improved to meet the requirements of high-pressure compressors.The compressor adopts air-cooled cylinder with high compression ratio and high efficiency.The compressor has a balanced design with low vibration and no special foundation is required.In some cases,it can even run on a high-density rubber liner.
The outlet of each stage of the compressor is equipped with an air-cooled cooler,a safety valve,a gas-water separator,and an automatic drain valve.All internal pipelines and connections are installed before leaving the factory,which is convenient for on-site installation
Characteristics Of Air Compressor
Designed for maximum efficiency. |
Our compressors feature interchangeable cylinders,cylinder heads,pistons and valves. |
We can offer compressors customized for wide ranges of pressure and volume at highly competitive prices. |
Adopting high speed,high compression ratio and low temperature rise design,which greatly improves the charging efficiency and prolongs the service life of the unit |
No special foundation required;compressors can be mounted on existing concrete floors. |
Optional custom filters. |
Multiple innovative designs improve efficiency and compressor productivity |
Our design provides extremely high volumetric efficiency despite continuous or intermittent operation |
Dynamically balanced to minimize vibration. |
Built for rugged performance. |
Unique pressurized crankcase recovers all piston ring blow-by,further increasing compression efficiency. |
Total oil carryover in most applications is just 10 to 15 ppm,with an optional oil removal system available to reduce oil carryover to 0.5 ppm. |
Internal components feature built-in guides and alignment for easy maintenance. |
Company Information
Shanghai Royal Machinery Co.,Ltd is a professional company of industrial air compressors, air treatment and air compressor spare parts, with engineers and sales people who have over 8 years experience, Royal Machinery has two business divisions, one is our own brand products, the other brands are Ingersoll Rand and Compair products. We have been marketing industrial compressed air equipment to global market since 2017 and the main assembling plants cover more than 50,000 square meters and 320 employees. The range of our compressors supplying start from the smallest compressors used by individuals to very large compressors used in heavy industrial applications. We started the business as a close partner to our customers, our sales team can provide you competitive price with high quality products, with our customers supporting, our team will get all the orders fulfilled on time and provide you excellent after-sales service. Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, Mining and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors, CNG compressors and CNG related equipment, also high pressure scuba air compressors. Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with us together for a fruitful future.
Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual, oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list, installation drawings, technical support and maintenance training.
